ePropulsion

X-Series

96 V integrated electric outboard family in 12 kW, 20 kW and 40 kW models with electric steering, power trim and high-efficiency direct drive. Within X-Series, compare installation and controls first, then published power, electrical system, weight, dimensions, charging requirements and the features that matter for your boat. Similar power ratings do not automatically make two configurations interchangeable. For larger outboards, check transom geometry, steering and trim, battery voltage and usable energy, cabling and total system weight.

ePropulsion X40

Series

Models

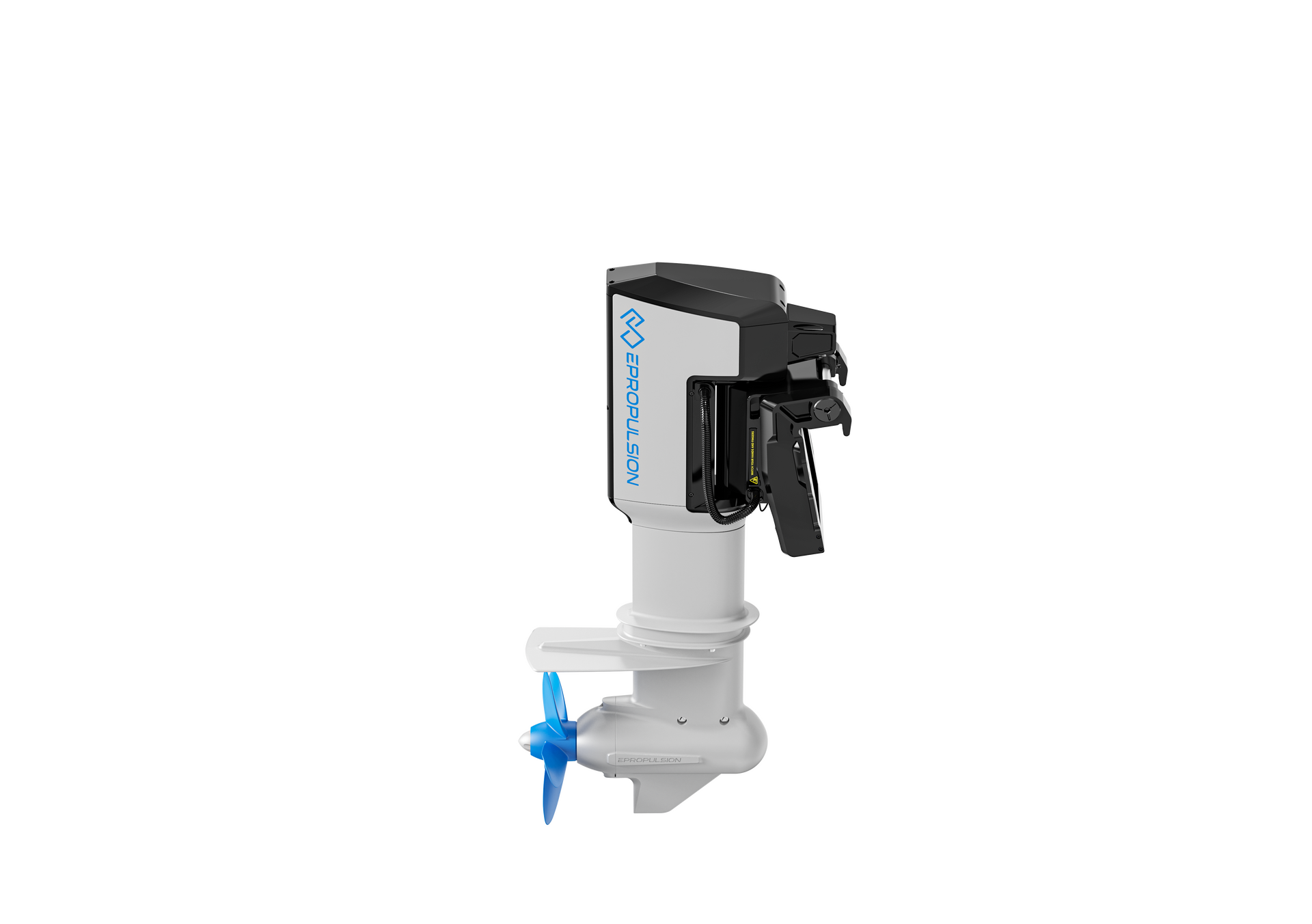

ePropulsion X12

X12

Model: X12

SKU X1-0000-L0
Cooling method
Natural cooling
Hydrogeneration
Yes
Input power
12 kW
Nominal voltage
96 V
Rated speed
1100–2000 rpm
Steering
Integrated electric steering ±45°
Trim / tilt
Power trim/tilt, -4° to 61°
Weight
48 kg short / 50 kg long
Variant source: ePropulsion — X-Series
View model →

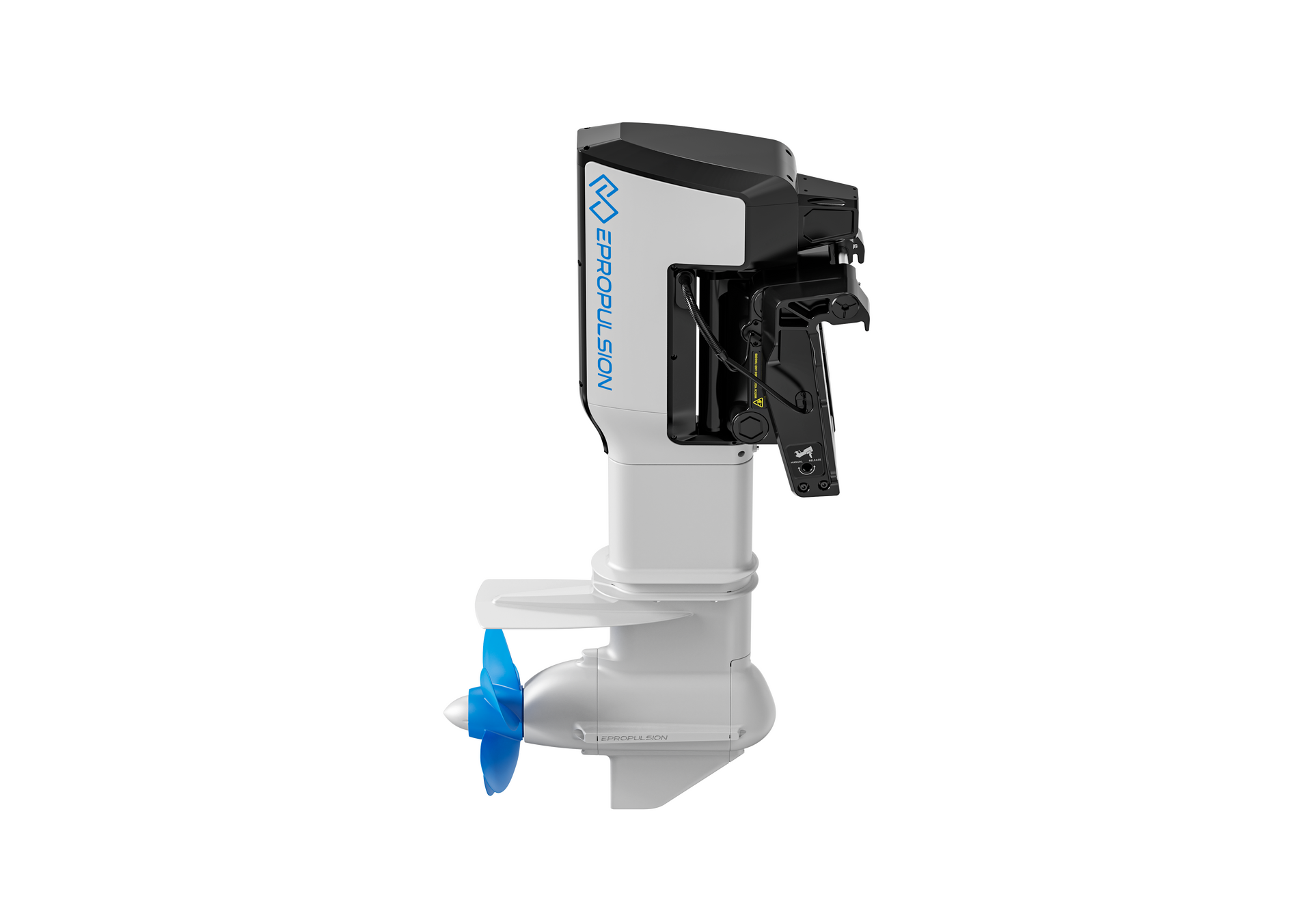

ePropulsion X20

X20

Model: X20

SKU X2-0000-L0
Cooling method
Natural cooling
Hydrogeneration
Yes
Input power
20 kW
Nominal voltage
96 V
Rated speed
1200–1800 rpm
Steering
Integrated electric steering ±45°
Trim / tilt
Power trim/tilt, -4° to 61°
Weight
79 kg long / 81 kg XL
Variant source: ePropulsion — X-Series
View model →

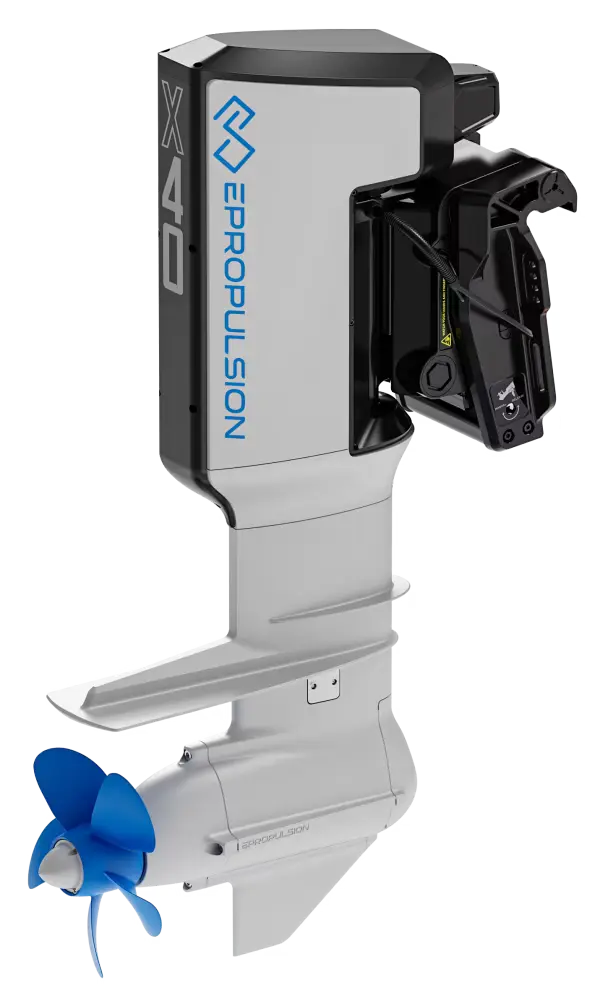

ePropulsion X40

X40

Model: X40

SKU X4-0000-L0
Cooling method
Closed-loop liquid cooling
Hydrogeneration
Yes
Input power
40 kW
Nominal voltage
96 V
Rated speed
1500–2100 rpm
Steering
Integrated electric steering ±45°
Trim / tilt
Power trim/tilt, -4° to 61°
Weight
99 kg long / 101.5 kg XL
Variant source: ePropulsion — X-Series
View model →

Traceable data

Sources and verification

Technical facts are linked to official manufacturer pages. Dates indicate when VerFinder checked the source.
